Chapter 5. Advanced Concepts

5.1. Using multiple channels
5.2. Sharing a transport between multiple channels in a JVM
5.3. Transport protocols
5.3.1. Message bundling
5.3.2. UDP
5.3.3. TCP
5.3.4. TUNNEL
5.4. The concurrent stack
5.4.1. Overview
5.4.2. Elimination of up and down threads
5.4.3. Concurrent message delivery
5.4.4. Scopes: concurrent message delivery for messages from the same sender
5.4.5. Out-of-band messages
5.4.6. Replacing the default and OOB thread pools
5.4.7. Sharing of thread pools between channels in the same JVM
5.5. Using a custom socket factory
5.6. Handling network partitions
5.6.1. Merging substates
5.6.2. The primary partition approach
5.6.3. The Split Brain syndrome and primary partitions
5.7. Flushing: making sure every node in the cluster received a message
5.8. Large clusters
5.8.1. Reducing chattiness
5.9. STOMP support
5.10. Bridging between remote clusters
5.10.1. Views
5.10.2. Configuration
5.11. Relaying between multiple sites (RELAY2)
5.11.1. Relaying of multicasts
5.11.2. Relaying of unicasts
5.11.3. Invoking RPCs across sites
5.11.4. Configuration
5.12. Daisychaining
5.12.1. Traditional N-1 approach
5.12.2. Daisychaining approach
5.12.3. Switch usage
5.12.4. Performance
5.12.5. Configuration
5.13. Tagging messages with flags
5.14. Performance tests
5.14.1. MPerf
5.15. Ergonomics
5.16. Supervising a running stack
5.17. Probe
5.18. Determining the coordinator and controlling view generation
5.19. ForkChannels: light-weight channels to piggy-back messages over an existing channel
5.19.1. Configuration
5.19.2. Creation of fork channels

This chapter discusses some of the more advanced concepts of JGroups with respect to using it and setting it up correctly.

When using a fully virtual synchronous protocol stack, the performance may not be great because of the larger number of protocols present. For certain applications, however, throughput is more important than ordering, e.g. for video/audio streams or airplane tracking. In the latter case, it is important that airplanes are handed over between control domains correctly, but if there are a (small) number of radar tracking messages (which determine the exact location of the plane) missing, it is not a problem. The first type of messages do not occur very often (typically a number of messages per hour), whereas the second type of messages would be sent at a rate of 10-30 messages/second. The same applies for a distributed whiteboard: messages that represent a video or audio stream have to be delivered as quick as possible, whereas messages that represent figures drawn on the whiteboard, or new participants joining the whiteboard have to be delivered according to a certain order.

The requirements for such applications can be solved by using two separate channels: one for control messages such as group membership, floor control etc and the other one for data messages such as video/audio streams (actually one might consider using one channel for audio and one for video). The control channel might use virtual synchrony, which is relatively slow, but enforces ordering and retransmission, and the data channel might use a simple UDP channel, possibly including a fragmentation layer, but no retransmission layer (losing packets is preferred to costly retransmission).

A transport protocol (UDP, TCP) has all the resources of a stack: the default thread pool, the OOB thread pool and the timer thread pool. If we run multiple channels in the same JVM, instead of creating 4 separate stacks with a separate transport each, we can create the transport protocol as a singleton protocol, shared by all 4 stacks.

If those transports happen to be the same (all 4 channels use UDP, for example), then we can share them and only create 1 instance of UDP. That transport instance is created and started only once; when the first channel is created, and is deleted when the last channel is closed.

If we have 4 channels inside of a JVM (as is the case in an application server such as JBoss), then we have 12 separate thread pools (3 per transport, 4 transports). Sharing the transport reduces this to 3.

Each channel created over a shared transport has to join a different cluster. An exception will be thrown if a channel sharing a transport tries to connect to a cluster to which another channel over the same transport is already connected.

This is needed to multiplex and de-multiplex messages between the shared transport and the different stacks running over it; when we have 3 channels (C1 connected to "cluster-1", C2 connected to "cluster-2" and C3 connected to "cluster-3") sending messages over the same shared transport, the cluster name with which the channel connected is used to multiplex messages over the shared transport: a header with the cluster name ("cluster-1") is added when C1 sends a message.

When a message with a header of "cluster-1" is received by the shared transport, it is used to demultiplex the message and dispatch it to the right channel (C1 in this example) for processing.

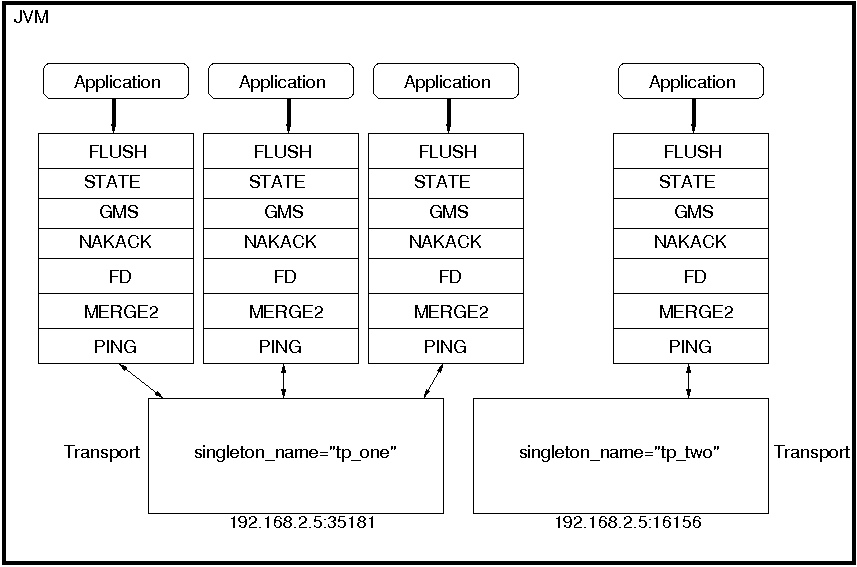

How channels can share a single transport is shown in Figure 5.1, “A shared transport”.


Here we see 4 channels which share 2 transports. Note that first 3 channels which share transport "tp_one" have the same protocols on top of the shared transport. This is not required; the protocols above "tp_one" could be different for each of the 3 channels as long as all applications residing on the same shared transport have the same requirements for the transport's configuration.

The "tp_two" transport is used by the application on the right side.

Note that the physical address of a shared channel is the same for all connected channels, so all applications sharing the first transport have physical address 192.168.2.5:35181.

To use shared transports, all we need to do is to add a property "singleton_name" to the transport configuration. All channels with the same singleton name will be shared:



<UDP ...
    singleton_name="tp_one" ...
/>


All channels using this configuration will now shared transport "tp_one". The channel on the right will have a different configuration, with singleton_name="tp_two".

A transport protocol refers to the protocol at the bottom of the protocol stack which is responsible for sending messages to and receiving messages from the network. There are a number of transport protocols in JGroups. They are discussed in the following sections.

A typical protocol stack configuration using UDP is:



<config xmlns="urn:org:jgroups"
        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xsi:schemaLocation="urn:org:jgroups http://www.jgroups.org/schema/jgroups.xsd">
    <UDP
         mcast_port="${jgroups.udp.mcast_port:45588}"
         tos="8"
         ucast_recv_buf_size="20M"
         ucast_send_buf_size="640K"
         mcast_recv_buf_size="25M"
         mcast_send_buf_size="640K"
         loopback="true"
         discard_incompatible_packets="true"
         max_bundle_size="64K"
         max_bundle_timeout="30"
         ip_ttl="${jgroups.udp.ip_ttl:2}"
         enable_bundling="true"
         enable_diagnostics="true"
         thread_naming_pattern="cl"

         timer_type="new"
         timer.min_threads="4"
         timer.max_threads="10"
         timer.keep_alive_time="3000"
         timer.queue_max_size="500"

         thread_pool.enabled="true"
         thread_pool.min_threads="2"
         thread_pool.max_threads="8"
         thread_pool.keep_alive_time="5000"
         thread_pool.queue_enabled="true"
         thread_pool.queue_max_size="10000"
         thread_pool.rejection_policy="discard"

         oob_thread_pool.enabled="true"
         oob_thread_pool.min_threads="1"
         oob_thread_pool.max_threads="8"
         oob_thread_pool.keep_alive_time="5000"
         oob_thread_pool.queue_enabled="false"
         oob_thread_pool.queue_max_size="100"
         oob_thread_pool.rejection_policy="Run"/>

    <PING timeout="2000"
            num_initial_members="3"/>
    <MERGE3 max_interval="30000"
            min_interval="10000"/>
    <FD_SOCK/>
    <FD_ALL/>
    <VERIFY_SUSPECT timeout="1500"  />
    <BARRIER />
    <pbcast.NAKACK use_mcast_xmit="true"
                   retransmit_timeout="300,600,1200"
                   discard_delivered_msgs="true"/>
    <UNICAST timeout="300,600,1200"/>
    <pbcast.STABLE stability_delay="1000" desired_avg_gossip="50000"
                   max_bytes="4M"/>
    <pbcast.GMS print_local_addr="true" join_timeout="3000"
                view_bundling="true"/>
    <UFC max_credits="2M"
         min_threshold="0.4"/>
    <MFC max_credits="2M"
         min_threshold="0.4"/>
    <FRAG2 frag_size="60K"  />
    <pbcast.STATE_TRANSFER />
</config>


In a nutshell the properties of the protocols are:

UDP

This is the transport protocol. It uses IP multicasting to send messages to the entire cluster, or individual nodes. Other transports include TCP and TUNNEL.

PING

This is the discovery protocol. It uses IP multicast (by default) to find initial members. Once found, the current coordinator can be determined and a unicast JOIN request will be sent to it in order to join the cluster.

MERGE3

Will merge sub-clusters back into one cluster, kicks in after a network partition healed.

FD_SOCK

Failure detection based on sockets (in a ring form between members). Generates notification if a member fails

FD / FD_ALL

Failure detection based on heartbeat are-you-alive messages. Generates notification if a member fails

VERIFY_SUSPECT

Double-checks whether a suspected member is really dead, otherwise the suspicion generated from protocol below is discarded

BARRIER

Needed to transfer state; this will block messages that modify the shared state until a digest has been taken, then unblocks all threads. Not needed if no state transfer protocol is present.

pbcast.NAKACK

Ensures (a) message reliability and (b) FIFO. Message reliability guarantees that a message will be received. If not, the receiver(s) will request retransmission. FIFO guarantees that all messages from sender P will be received in the order P sent them

UNICAST

Same as NAKACK for unicast messages: messages from sender P will not be lost (retransmission if necessary) and will be in FIFO order (conceptually the same as TCP in TCP/IP)

pbcast.STABLE

Deletes messages that have been seen by all members (distributed message garbage collection)

pbcast.GMS

Membership protocol. Responsible for joining/leaving members and installing new views.

UFC

Unicast Flow Control. Provides flow control between 2 members.

MFC

Multicast Flow Control. Provides flow control between a sender and all cluster members.

FRAG2

Fragments large messages into smaller ones and reassembles them back at the receiver side. For both multicast and unicast messages

STATE_TRANSFER

Ensures that state is correctly transferred from an existing member (usually the coordinator) to a new member.

Message bundling is beneficial when sending many small messages; it queues them until they have accumulated a certain size, or until a timeout has elapsed. Then, the queued messages are assembled into a larger message, and that message is then sent. At the receiver, the large message is disassembled and the smaller messages are sent up the stack.

When sending many smaller messages, the ratio between payload and message headers might be small; say we send a "hello" string: the payload here is 7 bytes, whereas the addresses and headers (depending on the stack configuration) might be 30 bytes. However, if we bundle (say) 100 messages, then the payload of the large message is 700 bytes, but the header is still 30 bytes. Thus, we're able to send more actual data across the wire with one large message than many smaller ones.

Message bundling is conceptually similar to TCP's Nagling algorithm.

A sample configuration is shown below:



<UDP
    enable_bundling="true"
    max_bundle_size="64K"
    max_bundle_timeout="30"
/>


Here, bundling is enabled (the default). The max accumulated size is 64'000 bytes and we wait for 30 ms max. If at time T0, we're sending 10 smaller messages with an accumulated size of 2'000 bytes, but then send no more messages, then the timeout will kick in after 30 ms and the messages will get packed into a large message M and M will be sent. If we send 1000 messages of 100 bytes each, then - after exceeding 64'000 bytes (after ca. 64 messages) - we'll send the large message, and this might have taken only 3 ms.

While message bundling is good when sending many small messages asynchronously, it can be bad when invoking synchronous RPCs: say we're invoking 10 synchronous (blocking) RPCs across the cluster with an RpcDispatcher (see Section 4.2, “RpcDispatcher”), and the payload of the marshalled arguments of one call is less than 64K.

Because the RPC is blocking, we'll wait until the call has returned before invoking the next RPC.

For each RPC, the request takes up to 30 ms, and each response will also take up to 30 ms, for a total of 60 ms per call. So the 10 blocking RPCs would take a total of 600 ms !

This is clearly not desirable. However, there's a simple solution: we can use message flags (see Section 5.13, “Tagging messages with flags”) to override the default bundling behavior in the transport:



RpcDispatcher disp;
RequestOptions opts=new RequestOptions(ResponseMode.GET_ALL, 5000)
                        .setFlags(Message.DONT_BUNDLE);
RspList rsp_list=disp.callRemoteMethods(null,
                                        "print",
                                        new Object[]{i},
                                        new Class[]{int.class},
                                        opts);


The RequestOptions.setFlags(Message.DONT_BUNDLE) call tags the message with the DONT_BUNDLE flag. When the message is to be sent by the transport, it will be sent immediately, regardless of whether bundling is enabled in the transport.

Using the DONT_BUNDLE flag to invoke print() will take a few milliseconds for 10 blocking RPCs versus 600 ms without the flag.

An alternative to setting the DONT_BUNDLE flag is to use futures to invoke 10 blocking RPCs:



List<Future<RspList>> futures=new ArrayList<Future<RspList>>();
for(int i=0; i < 10; i++) {
    Future<RspList> future=disp.callRemoteMethodsWithFuture(...);
    futures.add(future);
}
for(Future<RspList> future: futures) {
    RspList rsp_list=future.get();
    // do something with the response
}


Here we use callRemoteMethodsWithFuture() which (although the call is blocking!) returns immediately, with a future. After invoking the 10 calls, we then grab the results by fetching them from the futures.

Compared to the few milliseconds above, this will take ca 60 ms (30 for the request and 30 for the responses), but this is still better than the 600 ms we get when not using the DONT_BUNDLE flag. Note that, if the accumulated size of the 10 requests exceeds max_bundle_size, the large message would be sent immediately, so this might even be faster than 30 ms for the request.

UDP uses IP multicast for sending messages to all members of a cluster, and UDP datagrams for unicast messages (sent to a single member). When started, it opens a unicast and multicast socket: the unicast socket is used to send/receive unicast messages, while the multicast socket sends/receives multicast messages. The physical address of the channel will be the address and port number of the unicast socket.

A protocol stack with UDP as transport protocol is typically used with clusters whose members run on the same host or are distributed across a LAN. Note that before running instances in different subnets, an admin has to make sure that IP multicast is enabled across subnets. It is often the case that IP multicast is not enabled across subnets. Refer to section Section 2.8, “It doesn't work !” for running a test program that determines whether members can reach each other via IP multicast. If this does not work, the protocol stack cannot use UDP with IP multicast as transport. In this case, the stack has to either use UDP without IP multicasting, or use a different transport such as TCP.

The protocol stack with UDP and PING as the bottom protocols use IP multicasting by default to send messages to all members (UDP) and for discovery of the initial members (PING). However, if multicasting cannot be used, the UDP and PING protocols can be configured to send multiple unicast messages instead of one multicast message [5].

To configure UDP to use multiple unicast messages to send a group message instead of using IP multicasting, the ip_mcast property has to be set to false.

If we disable ip_mcast, we now also have to change the discovery protocol (PING). Because PING requires IP multicasting to be enabled in the transport, we cannot use it. Some of the alternatives are TCPPING (static list of member addresses), TCPGOSSIP (external lookup service), FILE_PING (shared directory), BPING (using broadcasts) or JDBC_PING (using a shared database).

See Section 7.3, “Initial membership discovery” for details on configuration of different discovery protocols.

TCP is a replacement for UDP as transport in cases where IP multicast cannot be used. This may be the case when operating over a WAN, where routers might discard IP multicast packets. Usually, UDP is used as transport in LANs, while TCP is used for clusters spanning WANs.

The properties for a typical stack based on TCP might look like this (edited for brevity):



<TCP bind_port="7800" />
<TCPPING timeout="3000"
         initial_hosts="${jgroups.tcpping.initial_hosts:HostA[7800],HostB[7801]}"
         port_range="1"
         num_initial_members="3"/>
<VERIFY_SUSPECT timeout="1500"  />
<pbcast.NAKACK use_mcast_xmit="false"
               retransmit_timeout="300,600,1200,2400,4800"
               discard_delivered_msgs="true"/>
<pbcast.STABLE stability_delay="1000" desired_avg_gossip="50000"
               max_bytes="400000"/>
<pbcast.GMS print_local_addr="true" join_timeout="3000"
               view_bundling="true"/>


When using TCP, each message to all of the cluster members is sent as multiple unicast messages (one to each member). Due to the fact that IP multicasting cannot be used to discover the initial members, another mechanism has to be used to find the initial membership. There are a number of alternatives (see Section 7.3, “Initial membership discovery” for a discussion of all discovery protocols):

  • TCPPING: uses a list of well-known group members that it solicits for initial membership

  • TCPGOSSIP: this requires a GossipRouter (see below), which is an external process, acting as a lookup service. Cluster members register with under their cluster name, and new members query the GossipRouter for initial cluster membership information.

The next two section illustrate the use of TCP with both TCPPING and TCPGOSSIP.

Firewalls are usually placed at the connection to the internet. They shield local networks from outside attacks by screening incoming traffic and rejecting connection attempts to host inside the firewalls by outside machines. Most firewall systems allow hosts inside the firewall to connect to hosts outside it (outgoing traffic), however, incoming traffic is most often disabled entirely.

Tunnels are host protocols which encapsulate other protocols by multiplexing them at one end and demultiplexing them at the other end. Any protocol can be tunneled by a tunnel protocol.

The most restrictive setups of firewalls usually disable all incoming traffic, and only enable a few selected ports for outgoing traffic. In the solution below, it is assumed that one TCP port is enabled for outgoing connections to the GossipRouter.

JGroups has a mechanism that allows a programmer to tunnel a firewall. The solution involves a GossipRouter, which has to be outside of the firewall, so other members (possibly also behind firewalls) can access it.

The solution works as follows. A channel inside a firewall has to use protocol TUNNEL instead of UDP or TCP as transport. The recommended discovery protocol is PING. Here's a configuration:



<TUNNEL gossip_router_hosts="HostA[12001]" />
<PING />


TUNNEL uses a GossipRouter (outside the firewall) running on HostA at port 12001 for tunneling. Note that it is not recommended to use TCPGOSSIP for discovery if TUNNEL is used (use PING instead). TUNNEL accepts one or multiple GossipRouters tor tunneling; they can be listed as a comma delimited list of host[port] elements specified in property gossip_router_hosts.

TUNNEL establishes a TCP connection to the GossipRouter process (outside the firewall) that accepts messages from members and passes them on to other members. This connection is initiated by the host inside the firewall and persists as long as the channel is connected to a group. A GossipRouter will use the same connection to send incoming messages to the channel that initiated the connection. This is perfectly legal, as TCP connections are fully duplex. Note that, if GossipRouter tried to establish its own TCP connection to the channel behind the firewall, it would fail. But it is okay to reuse the existing TCP connection, established by the channel.

Note that TUNNEL has to be given the hostname and port of the GossipRouter process. This example assumes a GossipRouter is running on HostA at port12001. TUNNEL accepts one or multiple router hosts as a comma delimited list of host[port] elements specified in property gossip_router_hosts.

Any time a message has to be sent, TUNNEL forwards the message to GossipRouter, which distributes it to its destination: if the message's destination field is null (send to all group members), then GossipRouter looks up the members that belong to that group and forwards the message to all of them via the TCP connections they established when connecting to GossipRouter. If the destination is a valid member address, then that member's TCP connection is looked up, and the message is forwarded to it [6] .

A GossipRouter is not a single point of failure. In a setup with multiple gossip routers, the routers do not communicate among themselves, and a single point of failure is avoided by having each channel simply connect to multiple available routers. In case one or more routers go down, the cluster members are still able to exchange messages through any of the remaining available router instances, if there are any.

For each send invocation, a channel goes through a list of available connections to routers and attempts to send the message on each connection until it succeeds. If a message can not be sent on any of the connections, an exception is raised. The default policy for connection selection is random. However, we provide an plug-in interface for other policies as well.

The GossipRouter configuration is static and is not updated for the lifetime of the channel. A list of available routers has to be provided in the channel's configuration file.

To tunnel a firewall using JGroups, the following steps have to be taken:

  1. Check that a TCP port (e.g. 12001) is enabled in the firewall for outgoing traffic

  2. Start the GossipRouter:

    java org.jgroups.stack.GossipRouter -port 12001

  3. Configure the TUNNEL protocol layer as instructed above.

  4. Create a channel

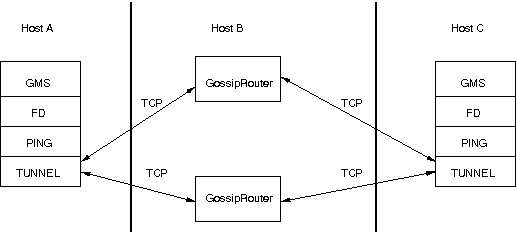

The general setup is shown in Figure 5.2, “Tunneling a firewall” .


First, the GossipRouter process is created on host B. Note that host B should be outside the firewall, and all channels in the same group should use the same GossipRouter process. When a channel on host A is created, its TCPGOSSIP protocol will register its address with the GossipRouter and retrieve the initial membership (assume this is C). Now, a TCP connection with the GossipRouter is established by A; this will persist until A crashes or voluntarily leaves the group. When A multicasts a message to the cluster, GossipRouter looks up all cluster members (in this case, A and C) and forwards the message to all members, using their TCP connections. In the example, A would receive its own copy of the multicast message it sent, and another copy would be sent to C.

This scheme allows for example Java applets , which are only allowed to connect back to the host from which they were downloaded, to use JGroups: the HTTP server would be located on host B and the gossip and GossipRouter daemon would also run on that host. An applet downloaded to either A or C would be allowed to make a TCP connection to B. Also, applications behind a firewall would be able to talk to each other, joining a group.

However, there are several drawbacks: first, having to maintain a TCP connection for the duration of the connection might use up resources in the host system (e.g. in the GossipRouter), leading to scalability problems, second, this scheme is inappropriate when only a few channels are located behind firewalls, and the vast majority can indeed use IP multicast to communicate, and finally, it is not always possible to enable outgoing traffic on 2 ports in a firewall, e.g. when a user does not 'own' the firewall.

The concurrent stack (introduced in 2.5) provides a number of improvements over previous releases, which has some deficiencies:

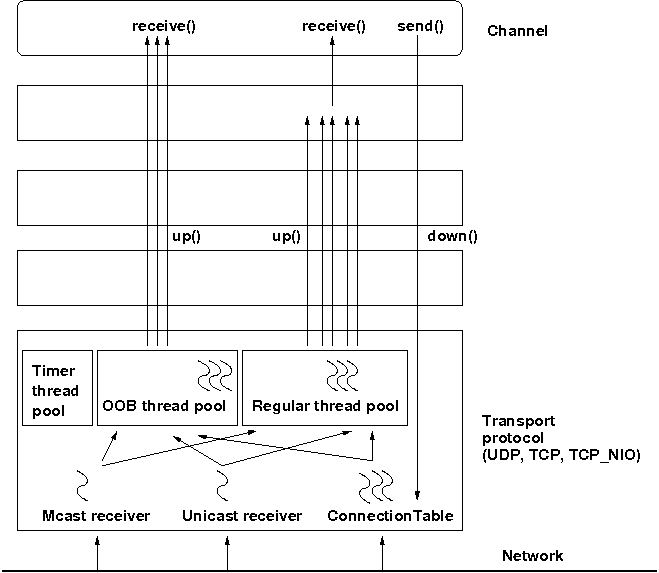

The architecture of the concurrent stack is shown in Figure 5.3, “The concurrent stack”. The changes were made entirely inside of the transport protocol (TP, with subclasses UDP, TCP and TCP_NIO). Therefore, to configure the concurrent stack, the user has to modify the config for (e.g.) UDP in the XML file.


The concurrent stack consists of 2 thread pools (java.util.concurrent.Executor): the out-of-band (OOB) thread pool and the regular thread pool. Packets are received by multicast or unicast receiver threads (UDP) or a ConnectionTable (TCP, TCP_NIO). Packets marked as OOB (with Message.setFlag(Message.OOB)) are dispatched to the OOB thread pool, and all other packets are dispatched to the regular thread pool.

When a thread pool is disabled, then we use the thread of the caller (e.g. multicast or unicast receiver threads or the ConnectionTable) to send the message up the stack and into the application. Otherwise, the packet will be processed by a thread from the thread pool, which sends the message up the stack. When all current threads are busy, another thread might be created, up to the maximum number of threads defined. Alternatively, the packet might get queued up until a thread becomes available.

The point of using a thread pool is that the receiver threads should only receive the packets and forward them to the thread pools for processing, because unmarshalling and processing is slower than simply receiving the message and can benefit from parallelization.

Note that this is preliminary and names or properties might change

We are thinking of exposing the thread pools programmatically, meaning that a developer might be able to set both threads pools programmatically, e.g. using something like TP.setOOBThreadPool(Executor executor).

Here's an example of the new configuration:



<UDP
    thread_naming_pattern="cl"

    thread_pool.enabled="true"
    thread_pool.min_threads="1"
    thread_pool.max_threads="100"
    thread_pool.keep_alive_time="20000"
    thread_pool.queue_enabled="false"
    thread_pool.queue_max_size="10"
    thread_pool.rejection_policy="Run"

    oob_thread_pool.enabled="true"
    oob_thread_pool.min_threads="1"
    oob_thread_pool.max_threads="4"
    oob_thread_pool.keep_alive_time="30000"
    oob_thread_pool.queue_enabled="true"
    oob_thread_pool.queue_max_size="10"
    oob_thread_pool.rejection_policy="Run"/>


The attributes for the 2 thread pools are prefixed with thread_pool and oob_thread_pool respectively.

The attributes are listed below. The roughly correspond to the options of a java.util.concurrent.ThreadPoolExecutor in JDK 5.


In the previous paragraph, we showed how the concurrent stack delivers messages from different senders concurrently. But all (non-OOB) messages from the same sender P are delivered in the order in which P sent them. However, this is not good enough for certain types of applications.

Consider the case of an application which replicates HTTP sessions. If we have sessions X, Y and Z, then updates to these sessions are delivered in the order in which there were performed, e.g. X1, X2, X3, Y1, Z1, Z2, Z3, Y2, Y3, X4. This means that update Y1 has to wait until updates X1-3 have been delivered. If these updates take some time, e.g. spent in lock acquisition or deserialization, then all subsequent messages are delayed by the sum of the times taken by the messages ahead of them in the delivery order.

However, in most cases, updates to different web sessions should be completely unrelated, so they could be delivered concurrently. For instance, a modification to session X should not have any effect on session Y, therefore updates to X, Y and Z can be delivered concurrently.

One solution to this is out-of-band (OOB) messages (see next paragraph). However, OOB messages do not guarantee ordering, so updates X1-3 could be delivered as X1, X3, X2. If this is not wanted, but messages pertaining to a given web session should all be delivered concurrently between sessions, but ordered within a given session, then we can resort to scoped messages.

Scoped messages apply only to regular (non-OOB) messages, and are delivered concurrently between scopes, but ordered within a given scope. For example, if we used the sessions above (e.g. the jsessionid) as scopes, then the delivery could be as follows ('->' means sequential, '||' means concurrent):

X1 -> X2 -> X3 -> X4 || Y1 -> Y2 -> Y3 || Z1 -> Z2 -> Z3

This means that all updates to X are delivered in parallel to updates to Y and updates to Z. However, within a given scope, updates are delivered in the order in which they were performed, so X1 is delivered before X2, which is deliverd before X3 and so on.

Taking the above example, using scoped messages, update Y1 does not have to wait for updates X1-3 to complete, but is processed immediately.

To set the scope of a message, use method Message.setScope(short).

Scopes are implemented in a separate protocol called Section 7.14.4, “SCOPE”. This protocol has to be placed somewhere above ordering protocols like UNICAST or NAKACK (or SEQUENCER for that matter).

Uniqueness of scopes

Note that scopes should be as unique as possible. Compare this to hashing: the fewer collisions there are, the better the concurrency will be. So, if for example, two web sessions pick the same scope, then updates to those sessions will be delivered in the order in which they were sent, and not concurrently. While this doesn't cause erraneous behavior, it defies the purpose of SCOPE.

Also note that, if multicast and unicast messages have the same scope, they will be delivered in sequence. So if A multicasts messages to the group with scope 25, and A also unicasts messages to B with scope 25, then A's multicasts and unicasts will be delivered in order at B ! Again, this is correct, but since multicasts and unicasts are unrelated, might slow down things !

In 2.7, there are 3 thread pools and 4 thread factories in TP:

Table 5.2. Thread pools and factories in TP

NameDescription
Default thread poolThis is the pool for handling incoming messages. It can be fetched using getDefaultThreadPool() and replaced using setDefaultThreadPool(). When setting a thread pool, the old thread pool (if any) will be shutdown and all of it tasks cancelled first
OOB thread poolThis is the pool for handling incoming OOB messages. Methods to get and set it are getOOBThreadPool() and setOOBThreadPool()
Timer thread poolThis is the thread pool for the timer. The max number of threads is set through the timer.num_threads property. The timer thread pool cannot be set, it can only be retrieved using getTimer(). However, the thread factory of the timer can be replaced (see below)
Default thread factoryThis is the thread factory (org.jgroups.util.ThreadFactory) of the default thread pool, which handles incoming messages. A thread pool factory is used to name threads and possibly make them daemons. It can be accessed using getDefaultThreadPoolThreadFactory() and setDefaultThreadPoolThreadFactory()
OOB thread factoryThis is the thread factory for the OOB thread pool. It can be retrieved using getOOBThreadPoolThreadFactory() and set using method setOOBThreadPoolThreadFactory()
Timer thread factoryThis is the thread factory for the timer thread pool. It can be accessed using getTimerThreadFactory() and setTimerThreadFactory()
Global thread factoryThe global thread factory can get used (e.g. by protocols) to create threads which don't live in the transport, e.g. the FD_SOCK server socket handler thread. Each protocol has a method getTransport(). Once the TP is obtained, getThreadFactory() can be called to get the global thread factory. The global thread factory can be replaced with setThreadFactory()


JGroups creates all of its sockets through a SocketFactory, which is located in the transport (TP) or TP.ProtocolAdapter (in a shared transport). The factory has methods to create sockets (Socket, ServerSocket, DatagramSocket and MulticastSocket) [7], closen sockets and list all open sockets. Every socket creation method has a service name, which could be for example "jgroups.fd_sock.srv_sock". The service name is used to look up a port (e.g. in a config file) and create the correct socket.

To provide one's own socket factory, the following has to be done: if we have a non-shared transport, the code below creates a SocketFactory implementation and sets it in the transport:



JChannel ch;
MySocketFactory factory; // e.g. extends DefaultSocketFactory
ch=new JChannel("config.xml");
ch.setSocketFactory(new MySocketFactory());
ch.connect("demo");


If a shared transport is used, then we have to set 2 socket factories: 1 in the shared transport and one in the TP.ProtocolAdapter:



JChannel c1=new JChannel("config.xml"), c2=new JChannel("config.xml");
TP transport=c1.getProtocolStack().getTransport();
transport.setSocketFactory(new MySocketFactory("transport"));
c1.setSocketFactory(new MySocketFactory("first-cluster"));
c2.setSocketFactory(new MySocketFactory("second-cluster"));
c1.connect("first-cluster");
c2.connect("second-cluster");


First, we grab one of the channels to fetch the transport and set a SocketFactory in it. Then we set one SocketFactory per channel that resides on the shared transport. When JChannel.connect() is called, the SocketFactory will be set in TP.ProtocolAdapter.

Network partitions can be caused by switch, router or network interface crashes, among other things. If we have a cluster {A,B,C,D,E} spread across 2 subnets {A,B,C} and {D,E} and the switch to which D and E are connected crashes, then we end up with a network partition, with subclusters {A,B,C} and {D,E}.

A, B and C can ping each other, but not D or E, and vice versa. We now have 2 coordinators, A and D. Both subclusters operate independently, for example, if we maintain a shared state, subcluster {A,B,C} replicate changes to A, B and C.

This means, that if during the partition, some clients access {A,B,C}, and others {D,E}, then we end up with different states in both subclusters. When a partition heals, the merge protocol (e.g. MERGE3) will notify A and D that there were 2 subclusters and merge them back into {A,B,C,D,E}, with A being the new coordinator and D ceasing to be coordinator.

The question is what happens with the 2 diverged substates ?

There are 2 solutions to merging substates: first we can attempt to create a new state from the 2 substates, and secondly we can shut down all members of the non primary partition, such that they have to re-join and possibly reacquire the state from a member in the primary partition.

In both cases, the application has to handle a MergeView (subclass of View), as shown in the code below:



public void viewAccepted(View view) {
    if(view instanceof MergeView) {
        MergeView tmp=(MergeView)view;
        Vector<View> subgroups=tmp.getSubgroups();
        // merge state or determine primary partition
        // run in a separate thread !
    }
}


It is essential that the merge view handling code run on a separate thread if it needs more than a few milliseconds, or else it would block the calling thread.

The MergeView contains a list of views, each view represents a subgroups and has the list of members which formed this group.

The primary partition approach is simple: on merging, one subgroup is designated as the primary partition and all others as non-primary partitions. The members in the primary partition don't do anything, whereas the members in the non-primary partitions need to drop their state and re-initialize their state from fresh state obtained from a member of the primary partition.

The code to find the primary partition needs to be deterministic, so that all members pick the same primary partition. This could be for example the first view in the MergeView, or we could sort all members of the new MergeView and pick the subgroup which contained the new coordinator (the one from the consolidated MergeView). Another possible solution could be to pick the largest subgroup, and, if there is a tie, sort the tied views lexicographically (all Addresses have a compareTo() method) and pick the subgroup with the lowest ranked member.

Here's code which picks as primary partition the first view in the MergeView, then re-acquires the state from the new coordinator of the combined view:



public static void main(String[] args) throws Exception {
    final JChannel ch=new JChannel("/home/bela/udp.xml");
    ch.setReceiver(new ExtendedReceiverAdapter() {
        public void viewAccepted(View new_view) {
            handleView(ch, new_view);
        }
    });
    ch.connect("x");
    while(ch.isConnected())
        Util.sleep(5000);
    }
    private static void handleView(JChannel ch, View new_view) {
        if(new_view instanceof MergeView) {
            ViewHandler handler=new ViewHandler(ch, (MergeView)new_view);
            // requires separate thread as we don't want to block JGroups
            handler.start();
        }
    }
    private static class ViewHandler extends Thread {
        JChannel ch;
        MergeView view;
        private ViewHandler(JChannel ch, MergeView view) {
            this.ch=ch;
            this.view=view;
        }
        public void run() {
            Vector<View> subgroups=view.getSubgroups();
            View tmp_view=subgroups.firstElement(); // picks the first
            Address local_addr=ch.getLocalAddress();
            if(!tmp_view.getMembers().contains(local_addr)) {
                System.out.println("Not member of the new primary partition ("
                                   + tmp_view + "), will re-acquire the state");
                try {
                    ch.getState(null, 30000);
                }
                catch(Exception ex) {
                }
            }
            else {
                System.out.println("Not member of the new primary partition ("
                                   + tmp_view + "), will do nothing");
            }
        }
}


The handleView() method is called from viewAccepted(), which is called whenever there is a new view. It spawns a new thread which gets the subgroups from the MergeView, and picks the first subgroup to be the primary partition. Then, if it was a member of the primary partition, it does nothing, and if not, it reaqcuires the state from the coordinator of the primary partition (A).

The downside to the primary partition approach is that work (= state changes) on the non-primary partition is discarded on merging. However, that's only problematic if the data was purely in-memory data, and not backed by persistent storage. If the latter's the case, use state merging discussed above.

It would be simpler to shut down the non-primary partition as soon as the network partition is detected, but that a non trivial problem, as we don't know whether {D,E} simply crashed, or whether they're still alive, but were partitioned away by the crash of a switch. This is called a split brain syndrome, and means that none of the members has enough information to determine whether it is in the primary or non-primary partition, by simply exchanging messages.

When sending messages, the properties of the default stacks (udp.xml, tcp.xml) are that all messages are delivered reliably to all (non-crashed) members. However, there are no guarantees with respect to the view in which a message will get delivered. For example, when a member A with view V1={A,B,C} multicasts message M1 to the group and D joins at about the same time, then D may or may not receive M1, and there is no guarantee that A, B and C receive M1 in V1 or V2={A,B,C,D}.

To change this, we can turn on virtual synchrony (by adding FLUSH to the top of the stack), which guarantees that

  • A message M sent in V1 will be delivered in V1. So, in the example above, M1 would get delivered in view V1; by A, B and C, but not by D.
  • The set of messages seen by members in V1 is the same for all members before a new view V2 is installed. This is important, as it ensures that all members in a given view see the same messages. For example, in a group {A,B,C}, C sends 5 messages. A receives all 5 messages, but B doesn't. Now C crashes before it can retransmit the messages to B. FLUSH will now ensure, that before installing V2={A,B} (excluding C), B gets C's 5 messages. This is done through the flush protocol, which has all members reconcile their messages before a new view is installed. In this case, A will send C's 5 messages to B.

Sometimes it is important to know that every node in the cluster received all messages up to a certain point, even if there is no new view being installed. To do this (initiate a manual flush), an application programmer can call Channel.startFlush() to start a flush and Channel.stopFlush() to terminate it.

Channel.startFlush() flushes all pending messages out of the system. This stops all senders (calling Channel.down() during a flush will block until the flush has completed)[8]. When startFlush() returns, the caller knows that (a) no messages will get sent anymore until stopFlush() is called and (b) all members have received all messages sent before startFlush() was called.

Channel.stopFlush() terminates the flush protocol, no blocked senders can resume sending messages.

Note that the FLUSH protocol has to be present on top of the stack, or else the flush will fail.

This section is a collection of best practices and tips and tricks for running large clusters on JGroups. By large clusters, we mean several hundred nodes in a cluster. These recommendations are captured in udp-largecluster.xml which is shipped with JGroups.

When we have a chatty protocol, scaling to a large number of nodes might be a problem: too many messages are sent and - because they are generated in addition to the regular traffic - this can have a negative impact on the cluster. A possible impact is that more of the regular messages are dropped, and have to be retransmitted, which impacts performance. Or heartbeats are dropped, leading to false suspicions. So while the negative effects of chatty protocols may not be seen in small clusters, they will be seen in large clusters !

Failure detection protocols determine when a member is unresponsive, and subsequently suspect it. Usually (FD, FD_ALL), messages (heartbeats) are used to determine the health of a member, but we can also use TCP connections (FD_SOCK) to connect to a member P, and suspect P when the connection is closed.

Heartbeating requires messages to be sent around, and we need to be careful to limit the number of messages sent by a failure detection protocol (1) to detect crashed members and (2) when a member has been suspected. The following sections discuss how to configure FD_ALL, FD and FD_SOCK, the most commonly used failure detection protocols, for use in large clusters.

STOMP is a JGroups protocol which implements the STOMP protocol. Currently (as of Aug 2011), transactions and acks are not implemented.

Adding the STOMP protocol to a configuration means that

  • Clients written in different languages can subscribe to destinations, send messages to destinations, and receive messages posted to (subscribed) destinations. This is similar to JMS topics.

  • Clients don't need to join any cluster; this allows for light weight clients, and we can run many of them.

  • Clients can access a cluster from a remote location (e.g. across a WAN).

  • STOMP clients can send messages to cluster members, and vice versa.

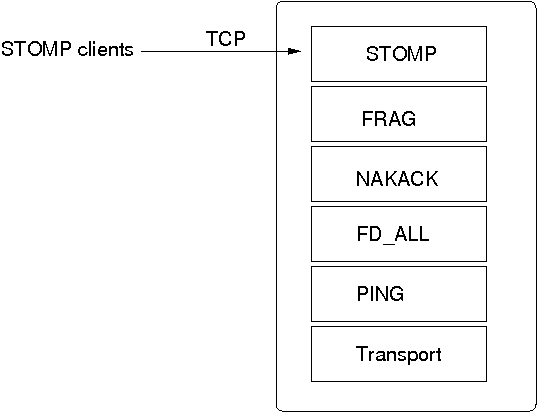

The location of a STOMP protocol in a stack is shown in Figure 5.4, “STOMP in a protocol stack”.


The STOMP protocol should be near the top of the stack.

A STOMP instance listens on a TCP socket for client connections. The port and bind address of the server socket can be defined via properties.

A client can send SUBSCRIBE commands for various destinations. When a SEND for a given destination is received, STOMP adds a header to the message and broadcasts it to all cluster nodes. Every node then in turn forwards the message to all of its connected clients which have subscribed to the same destination. When a destination is not given, STOMP simply forwards the message to all connected clients.

Traffic can be generated by clients and by servers. In the latter case, we could for example have code executing in the address space of a JGroups (server) node. In the former case, clients use the SEND command to send messages to a JGroups server and receive messages via the MESSAGE command. If there is code on the server which generates messages, it is important that both client and server code agree on a marshalling format, e.g. JSON, so that they understand each other's messages.

Clients can be written in any language, as long as they understand the STOMP protocol. Note that the JGroups STOMP protocol implementation sends additional information (e.g. INFO) to clients; non-JGroups STOMP clients should simply ignore them.

JGroups comes with a STOMP client (org.jgroups.client.StompConnection) and a demo (StompDraw). Both need to be started with the address and port of a JGroups cluster node. Once they have been started, the JGroups STOMP protocol will notify clients of cluster changes, which is needed so client can failover to another JGroups server node when a node is shut down. E.g. when a client connects to C, after connection, it'll get a list of endpoints (e.g. A,B,C,D). When C is terminated, or crashes, the client automatically reconnects to any of the remaining nodes, e.g. A, B, or D. When this happens, a client is also re-subscribed to the destinations it registered for.

The JGroups STOMP protocol can be used when we have clients, which are either not in the same network segment as the JGroups server nodes, or which don't want to become full-blown JGroups server nodes. Figure 5.5, “STOMP architecture” shows a typical setup.

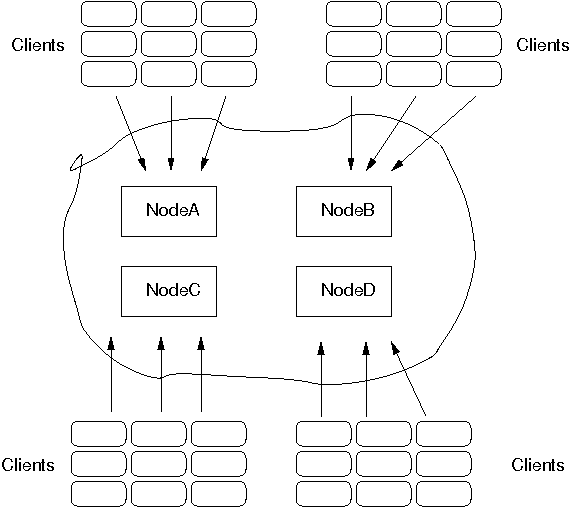

There are 4 nodes in a cluster. Say the cluster is in a LAN, and communication is via IP multicasting (UDP as transport). We now have clients which do not want to be part of the cluster themselves, e.g. because they're in a different geographic location (and we don't want to switch the main cluster to TCP), or because clients are frequently started and stopped, and therefore the cost of startup and joining wouldn't be amortized over the lifetime of a client. Another reason could be that clients are written in a different language, or perhaps, we don't want a large cluster, which could be the case if we for example have 10 JGroups server nodes and 1000 clients connected to them.

In the example, we see 9 clients connected to every JGroups cluster node. If a client connected to node A sends a message to destination /topics/chat, then the message is multicast from node A to all other nodes (B, C and D). Every node then forwards the message to those clients which have previously subscribed to /topics/chat.

When node A crashes (or leaves) the JGroups STOMP clients (org.jgroups.client.StompConnection) simply pick another server node and connect to it.

For more information about STOMP see the blog entry at http://belaban.blogspot.com/2010/10/stomp-for-jgroups.html.

In 2.12, the RELAY protocol was added to JGroups (for the properties see Section 7.14.5, “RELAY”). It allows for bridging of remote clusters. For example, if we have a cluster in New York (NYC) and another one in San Francisco (SFO), then RELAY allows us to bridge NYC and SFO, so that multicast messages sent in NYC will be forwarded to SFO and vice versa.

The NYC and SFO clusters could for example use IP multicasting (UDP as transport), and the bridge could use TCP as transport. The SFO and NYC clusters don't even need to use the same cluster name.

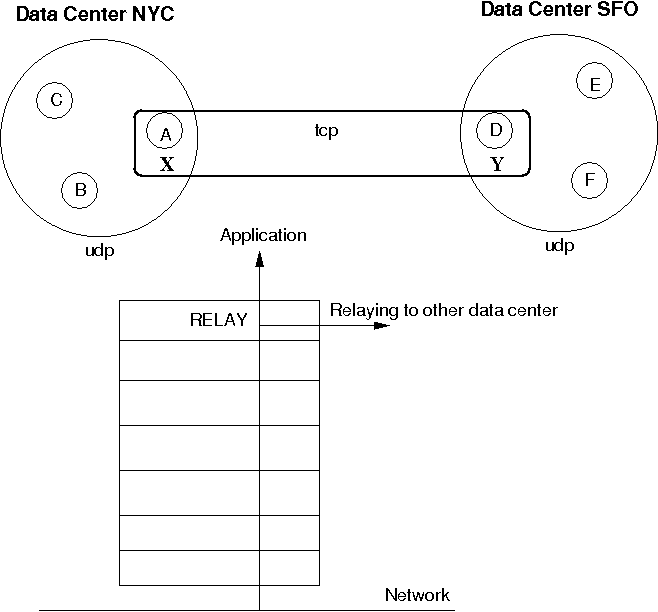

Figure 5.6, “Relaying between different clusters” shows how the two clusters are bridged.


The cluster on the left side with nodes A (the coordinator), B and C is called "NYC" and use IP multicasting (UDP as transport). The cluster on the right side ("SFO") has nodes D (coordinator), E and F.

The bridge between the local clusters NYC and SFO is essentially another cluster with the coordinators (A and D) of the local clusters as members. The bridge typically uses TCP as transport, but any of the supported JGroups transports could be used (including UDP, if supported across a WAN, for instance).

Only a coordinator relays traffic between the local and remote cluster. When A crashes or leaves, then the next-in-line (B) takes over and starts relaying.

Relaying is done via the RELAY protocol added to the top of the stack. The bridge is configured with the bridge_props property, e.g. bridge_props="/home/bela/tcp.xml". This creates a JChannel inside RELAY.

Note that property "site" must be set in both subclusters. In the example above, we could set site="nyc" for the NYC subcluster and site="sfo" for the SFO ubcluster.

The design is described in detail in JGroups/doc/design/RELAY.txt (part of the source distribution). In a nutshell, multicast messages received in a local cluster are wrapped and forwarded to the remote cluster by a relay (= the coordinator of a local cluster). When a remote cluster receives such a message, it is unwrapped and put onto the local cluster.

JGroups uses subclasses of UUID (PayloadUUID) to ship the site name with an address. When we see an address with site="nyc" on the SFO side, then RELAY will forward the message to the SFO subcluster, and vice versa. When C multicasts a message in the NYC cluster, A will forward it to D, which will re-broadcast the message on its local cluster, with the sender being D. This means that the sender of the local broadcast will appear as D (so all retransmit requests got to D), but the original sender C is preserved in the header. At the RELAY protocol, the sender will be replaced with the original sender (C) having site="nyc". When node F wants to reply to the sender of the multicast, the destination of the message will be C, which is intercepted by the RELAY protocol and forwarded to the current relay (D). D then picks the correct destination (C) and sends the message to the remote cluster, where A makes sure C (the original sender) receives it.

An important design goal of RELAY is to be able to have completely autonomous clusters, so NYC doesn't for example have to block waiting for credits from SFO, or a node in the SFO cluster doesn't have to ask a node in NYC for retransmission of a missing message.

Similar to Section 5.10, “Bridging between remote clusters”, RELAY2 provides clustering between sites. However, the differences to RELAY are:

  • Clustering can be done between multiple sites. Currently (3.2), sites have to be directly reachable. In 3.3, hierarchical setups of sites will be implemented.
  • Virtual (global) views are not provided anymore. If we have clusters SFO={A,B,C} and LON={X,Y,Z}, then both clusters are completed autonomous and don't know about each other's existence.
  • Not only unicasts, but also multicasts can be routed between sites (configurable).

To use RELAY2, it has to be placed at the top of the configuration, e.g.:



<relay.RELAY2 site="LON" config="/home/bela/relay2.xml"
              relay_multicasts="true" />
<FORWARD_TO_COORD />


The above configuration has a site name which will be used to route messages between sites. To do that, addresses contain the site-ID, so we always know which site the address is from. E.g. an address A1:LON in the SFO site is not local, but will be routed to the remote site SFO.

The FORWARD_TO_COORD protocol is optional, but since it guarantees reliable message forwarding to the local site master, it is recommended. It makes sure that - if a local coordinator (site master) crashes or leaves while a message is being forwarded to it - the message will be forwarded to the next coordinator once elected.

The relay_multicasts property determines whether or not multicast messages (with dest = null) are relayed to the other sites, or not. When we have a site LON, connected to sites SFO and NYC, if a multicast message is sent in site LON, and relay_multicasts is true, then all members of sites SFO and NYC will receive the message.

The config property points to an XML file which defines the setup of the sites, e.g.:



<RelayConfiguration xmlns="urn:jgroups:relay:1.0">

    <sites>
        <site name="lon" id="0">
            <bridges>
                <bridge config="/home/bela/global.xml" name="global"/>
            </bridges>
        </site>

        <site name="nyc" id="1">
            <bridges>
                <bridge config="/home/bela/global.xml" name="global"/>
            </bridges>
        </site>

        <site name="sfo" id="2">
            <bridges>
                <bridge name="global" config="/home/bela/global.xml"/>
            </bridges>
        </site>
    </sites>
</RelayConfiguration>


Note

The configuration as shown above might change in 3.3, when hierarchical routing will be added.

This defines 3 sites LON, SFO and NYC. All the sites are connected to a global cluster (bus) "global" (defined by /home/bela/global.xml). All inter-site traffic will be sent via this global cluster (which has to be accessible by all of the sites). Intra-site traffic is sent via the cluster that's defined by the configuration of which RELAY2 is the top protocol.

The above configuration is not mandatory, ie. instead of a global cluster, we could define separate clusters between LON and SFO and LON and NYC. However, in such a setup, due to lack of hierarchical routing, NYC and SFO wouldn't be able to send each other messages; only LON would be able to send message to SFO and NYC.

As discussed above, relaying of unicasts is done transparently. However, if we don't have a target address (e.g. as a result of reception of a multicast), there is a special address SiteMaster which identifies the site master; the coordinator of a local cluster responsible for relaying of messages.

Class SiteMaster is created with the name of a site, e.g. new SiteMaster("LON"). When a unicast with destination SiteMaster("LON") is sent, then we relay the message to the current site master of LON. If the site master changes, messages will get relayed to a different node, which took over the role of the site master from the old (perhaps crashed) site master.

Sometimes only certain members of a site should become site masters; e.g. the more powerful boxes (as routing needs some additional CPU power), or multi-homed hosts which are connected to the external network (over which the sites are connected with each other).

To do this, RELAY2 can generate special addresses which contain the knowledge about whether a member should be skipped when selecting a site master from a view, or not. If can_become_site_master is set to false in RELAY2, then the selection process will skip that member. However, if all members in a given view are marked with can_become_site_master=false, then the first member of the view will get picked.

When we have all members in a view marked with can_become_site_master=false, e.g. {B,C,D}, then B is the site master. If we now start a member A with can_become_site_master=true, then B will stop being the site master and A will become the new site master.

Invoking RPCs across sites is more or less transparent, except for the case when we cannot reach a member of a remote site. If we want to invoke method foo() in A1, A2 (local) and SiteMaster("SFO"), we could write the following code:



List<Address> dests=new ArrayList<Address>(view.getMembers());
dests.add(new SiteMaster("SFO"));
RspList<Object> rsps;
rsps=disp.callRemoteMethods(dests, call,
              new RequestOptions(ResponseMode.GET_ALL, 5000).setAnycasting(true));
for(Rsp rsp: rsps.values()) {
    if(rsp.wasUnreachable())
        System.out.println("<< unreachable: " + rsp.getSender());
    else
        System.out.println("<< " + rsp.getValue() + " from " + rsp.getSender());
}


First, we add the members (A1 and A2) of the current (local) view to the destination set. Then we add the special address SiteMaster("SFO") which acts as a placeholder for the current coordinator of the SFO site.

Next, we invoke the call with dests as target set and block until responses from all A1, A2 and SiteMaster("SFO") have been received, or until 5 seconds have elapsed.

Next, we check the response list. And here comes the bit that's new in 3.2: if a site is unreachable, a Rsp has an additional field "unreachable", which means that we could not reach the site master of SFO for example. Note that this is not necessarily an error, as a site maybe currently down, but the caller now has the option of checking on this new status field.

Let's configure an example which consists of 3 sites SFO, LON and NYC and 2 members in each site. First we define the configuration for the local cluster (site) SFO. To do this, we could for example copy udp.xml from the JGroups distro (and name it sfo.xml) and add RELAY2 to the top (as shown above). RELAY2's config property points to relay2.xml as shown above as well. The relay2.xml file defines a global cluster with global.xml, which uses TCP and MPING for the global cluster (copy for example tcp.xml to create global.xml)

Now copy sfo.xml to lon.xml and nyc.xml. The RELAY2 configuration stays the same for lon.xml and nyc.xml, but the multicast address and/or multicast port has to be changed in order to create 3 separate local clusters. Therefore, modify both lon.xml and nyc.xml and change mcast_port and / or mcast_addr in UDP to use separate values, so the clusters don't interfere with each other.

To test whether we have 3 different clusters, start the Draw application (shipped with JGroups):

java -Djava.net.preferIPv4Stack=true org.jgroups.demos.Draw -props ./sfo.xml -name sfo1
java -Djava.net.preferIPv4Stack=true org.jgroups.demos.Draw -props ./sfo.xml -name sfo2
java -Djava.net.preferIPv4Stack=true org.jgroups.demos.Draw -props ./lon.xml -name lon1
java -Djava.net.preferIPv4Stack=true org.jgroups.demos.Draw -props ./lon.xml -name lon2
java -Djava.net.preferIPv4Stack=true org.jgroups.demos.Draw -props ./nyc.xml -name nyc1
java -Djava.net.preferIPv4Stack=true org.jgroups.demos.Draw -props ./nyc.xml -name nyc2


We should now have 3 local clusters (= sites) of 2 instances each. When RELAY2.relay_multicasts is true, if you draw in one instance, we should see the drawing in all 6 instances. This means that relaying of multicasting between sites works. If this doesn't work, run a few Draw instances on global.xml, to see if they find each other.

Note that the first member of each cluster always joins the global cluster (defined by global.xml) too. This is necessary to relay messages between sites.

To test unicasts between sites, you can use the org.jgroups.demos.RelayDemoRpc program: start it as follows:

java -Djava.net.preferIPv4Stack=true org.jgroups.demos.RelayDemoRpc -props ./sfo.xml -name sfo1

Start 2 instances in 3 sites and then use

mcast lon sfo nyc

to invoke RPCs on all local members and site masters SFO, NYC and LON. If one of the sites is down, you'll get a message stating the site is unreachable.

Daisychaining refers to a way of disseminating messages sent to the entire cluster.

The idea behind it is that it is inefficient to broadcast a message in clusters where IP multicasting is not available. For example, if we only have TCP available (as is the case in most clouds today), then we have to send a broadcast (or group) message N-1 times. If we want to broadcast M to a cluster of 10, we send the same message 9 times.

Example: if we have {A,B,C,D,E,F}, and A broadcasts M, then it sends it to B, then to C, then to D etc. If we have a 1 GB switch, and M is 1GB, then sending a broadcast to 9 members takes 9 seconds, even if we parallelize the sending of M. This is due to the fact that the link to the switch only sustains 1GB / sec. (Note that I'm conveniently ignoring the fact that the switch will start dropping packets if it is overloaded, causing TCP to retransmit, slowing things down)...

Let's introduce the concept of a round. A round is the time it takes to send or receive a message. In the above example, a round takes 1 second if we send 1 GB messages. In the existing N-1 approach, it takes X * (N-1) rounds to send X messages to a cluster of N nodes. So to broadcast 10 messages a the cluster of 10, it takes 90 rounds.

Enter DAISYCHAIN.

The idea is that, instead of sending a message to N-1 members, we only send it to our neighbor, which forwards it to its neighbor, and so on. For example, in {A,B,C,D,E}, D would broadcast a message by forwarding it to E, E forwards it to A, A to B, B to C and C to D. We use a time-to-live field, which gets decremented on every forward, and a message gets discarded when the time-to-live is 0.

The advantage is that, instead of taxing the link between a member and the switch to send N-1 messages, we distribute the traffic more evenly across the links between the nodes and the switch. Let's take a look at an example, where A broadcasts messages m1 and m2 in cluster {A,B,C,D}, '-->' means sending:

A message can be tagged with a selection of flags, which alter the way certain protocols treat the message. This is done as follows:



Message msg=new Message();
msg.setFlag(Message.OOB, Message.NO_FC);


Here we tag the message to be OOB (out of band) and to bypass flow control.

The advantage of tagging messages is that we don't need to change the configuration, but instead can override it on a per-message basis.

The available flags are:

Message.OOB

This tags a message as out-of-band, which will get it processed by the out-of-band thread pool at the receiver's side. Note that an OOB message does not provide any ordering guarantees, although OOB messages are reliable (no loss) and are delivered only once. See Section 5.4.5, “Out-of-band messages” for details.

Message.DONT_BUNDLE

This flag causes the transport not to bundle the message, but to send it immediately.

See Section 5.3.1.1, “Message bundling and performance” for a discussion of the DONT_BUNDLE flag with respect to performance of blocking RPCs.

Message.NO_FC

This flag bypasses any flow control protocol (see Section 7.9, “Flow control”) for a discussion of flow control protocols.

Message.SCOPED

This flag is set automatically when Message.setScope() is called. See Section 5.4.4, “Scopes: concurrent message delivery for messages from the same sender” for a discussion on scopes.

Message.NO_RELIABILITY

When sending unicast or multicast messages, some protocols (UNICAST, NAKACK) add sequence numbers to the messages in order to (1) deliver them reliably and (2) in order.

If we don't want reliability, we can tag the message with flag NO_RELIABILITY. This means that a message tagged with this flag may not be received, may be received more than once, or may be received out of order.

A message tagged with NO_RELIABILITY will simply bypass reliable protocols such as UNICAST and NAKACK.

For example, if we send multicast message M1, M2 (NO_RELIABILITY), M3 and M4, and the starting sequence number is #25, then M1 will have seqno #25, M3 will have #26 and M4 will have #27. We can see that we don't allocate a seqno for M2 here.

Message.NO_TOTAL_ORDER

If we use a total order configuration with SEQUENCER (Section 7.11.1, “SEQUENCER”), then we can bypass SEQUENCER (if we don't need total order for a given message) by tagging the message with NO_TOTAL_ORDER.

Message.NO_RELAY

If we use RELAY (see Section 5.10, “Bridging between remote clusters”) and don't want a message to be relayed to the other site(s), then we can tag the message with NO_RELAY.

Message.RSVP

When this flag is set, a message send will block until the receiver (unicast) or receivers (multicast) have acked reception of the message, or until a timeout occurs. See Section 3.8.8.2, “Synchronous messages” for details.

Message.DONT_LOOPBACK

If this flag is set and the message is a multicast message (dest == null), then the transport by default (1) multicasts the message, (2) loops it back up the stack (on a separate thread) and (3) discards the multicast when received.

When DONT_LOOPBACK is set, the message will be multicast, but it will not be looped back up the stack. This is useful for example when the sender doesn't want to receive its own multicast. Contrary to JChannel.setDiscardOwnMessages(), this flag can be set per message and the processing is done at the transport level rather than the JChannel level.

An example is the Discovery protocol: when sending a discovery request, the sender is only interested in responses from other members and therefore doesn't need to receive its own discovery multicast request.

Note that this is a transient flag, so Message.isTransientFlagSet(..) has to be used instead of Message.isFlagSet(..

Note

Note that DONT_LOOPBACK does not make any sense for unicast messages, as the sender of a message sent to itself will never receive it.

There are a number of performance tests shipped with JGroups. The section below discusses MPerf, which is a replacement for (static) perf.Test. This change was done in 3.1.

MPerf is a test which measures multicast performance. This doesn't mean IP multicast performance, but point-to-multipoint performance. Point-to-multipoint means that we measure performance of one-to-many messages; in other words, messages sent to all cluster members.

Compared to the old perf.Test, MPerf is dynamic; it doesn't need a setup file to define the number of senders, number of messages to be sent and message size. Instead, all the configuration needed by an instance of MPerf is an XML stack configuration, and configuration changes done in one member are automatically broadcast to all other members.

MPerf can be started as follows:

java -cp $CLASSPATH -Djava.net.preferIPv4Stack=true org.jgroups.tests.perf.MPerf -props ./fast.xml


This assumes that we're using IPv4 addresses (otherwise IPv6 addresses are used) and the JGroups JAR on CLASSPATH.

A screen shot of MPerf looks like this (could be different, depending on the JGroups version):

[linux]/home/bela$ mperf.sh -props ./fast.xml -name B

----------------------- MPerf -----------------------
Date: Mon Dec 12 15:33:21 CET 2011
Run by: bela
JGroups version: 3.1.0.Alpha1

-------------------------------------------------------------------
GMS: address=B, cluster=mperf, physical address=192.168.1.5:46614
-------------------------------------------------------------------
** [A|9] [A, B]
num_msgs=1000000
msg_size=1000
num_threads=1
[1] Send [2] View
[3] Set num msgs (1000000) [4] Set msg size (1KB) [5] Set threads (1)
[6] New config (./fast.xml)
[x] Exit this [X] Exit all


We're starting MPerf with -props ./fast.xml and -name B. The -props option points to a JGroups configuration file, and -name gives the member the name "B".

MPerf can then be run by pressing [1]. In this case, every member in the cluster (in the example, we have members A and B) will send 1 million 1K messages. Once all messages have been received, MPerf will write a summary of the performance results to stdout:

[1] Send [2] View
[3] Set num msgs (1000000) [4] Set msg size (1KB) [5] Set threads (1)
[6] New config (./fast.xml)
[x] Exit this [X] Exit all
1
-- sending 1000000 msgs
++ sent 100000
-- received 200000 msgs (1410 ms, 141843.97 msgs/sec, 141.84MB/sec)
++ sent 200000
-- received 400000 msgs (1326 ms, 150829.56 msgs/sec, 150.83MB/sec)
++ sent 300000
-- received 600000 msgs (1383 ms, 144613.16 msgs/sec, 144.61MB/sec)
++ sent 400000
-- received 800000 msgs (1405 ms, 142348.75 msgs/sec, 142.35MB/sec)
++ sent 500000
-- received 1000000 msgs (1343 ms, 148920.33 msgs/sec, 148.92MB/sec)
++ sent 600000
-- received 1200000 msgs (1700 ms, 117647.06 msgs/sec, 117.65MB/sec)
++ sent 700000
-- received 1400000 msgs (1399 ms, 142959.26 msgs/sec, 142.96MB/sec)
++ sent 800000
-- received 1600000 msgs (1359 ms, 147167.03 msgs/sec, 147.17MB/sec)
++ sent 900000
-- received 1800000 msgs (1689 ms, 118413.26 msgs/sec, 118.41MB/sec)
++ sent 1000000
-- received 2000000 msgs (1519 ms, 131665.57 msgs/sec, 131.67MB/sec)

Results:

B: 2000000 msgs, 2GB received, msgs/sec=137608.37, throughput=137.61MB
A: 2000000 msgs, 2GB received, msgs/sec=137959.58, throughput=137.96MB

===============================================================================
 Avg/node:    2000000 msgs, 2GB received, msgs/sec=137788.49, throughput=137.79MB
 Avg/cluster: 4000000 msgs, 4GB received, msgs/sec=275576.99, throughput=275.58MB
================================================================================


[1] Send [2] View
[3] Set num msgs (1000000) [4] Set msg size (1KB) [5] Set threads (1) [6] New config (./fast.xml)
[x] Exit this [X] Exit all


In the sample run above, we see member B's screen. B sends 1 million messages and waits for its 1 million and the 1 million messages from B to be received before it dumps some stats to stdout. The stats include the number of messages and bytes received, the time, the message rate and throughput averaged over the 2 members. It also shows the aggregated performance over the entire cluster.

In the sample run above, we got an average 137MB of data per member per second, and an aggregated 275MB per second for the entire cluster (A and B in this case).

Parameters such as the number of messages to be sent, the message size and the number of threads to be used to send the messages can be configured by pressing the corresponding numbers. After pressing return, the change will be broadcast to all cluster members, so that we don't have to go to each member and apply the same change. Also, new members started, will fetch the current configuration and apply it.

For example, if we set the message size in A to 2000 bytes, then the change would be sent to B, which would apply it as well. If we started a third member C, it would also have a configuration with a message size of 2000.

Another feature is the ability to restart all cluster members with a new configuration. For example, if we modified ./fast.xml, we could select [6] to make all cluster members disconnect and close their existing channels and start a new channel based on the modified fast.xml configuration.

The new configuration file doesn't even have to be accessible on all cluster members; only on the member which makes the change. The file contents will be read by that member, converted into a byte buffer and shipped to all cluster members, where the new channel will then be created with the byte buffer (converted into an input stream) as config.

Being able to dynamically change the test parameters and the JGroups configuration makes MPerf suited to be run in larger clusters; unless a new JGroups version is installed, MPerf will never have to be restarted manually.

Ergonomics is similar to the dynamic setting of optimal values for the JVM, e.g. garbage collection, memory sizes etc. In JGroups, ergonomics means that we try to dynamically determine and set optimal values for protocol properties. Examples are thread pool size, flow control credits, heartbeat frequency and so on.

There is an ergonomics property which can be enabled or disabled for every protocol. The default is true. To disable it, set it to false, e.g.:



<UDP... />
<PING ergonomics="false"/>


Here we leave ergonomics enabled for UDP (the default is true), but disable it for PING.

Ergonomics is work-in-progress, and will be implemented over multiple releases.

SUPERVISOR (Section 7.14.13, “SUPERVISOR”) provides a rule based fault detection and correction protocol. It allows for rules to be installed, which are periodically invoked. When invoked, a condition can be checked and corrective action can be taken to fix the problem. Essentially, SUPERVISOR acts like a human administrator, except that condition checking and action triggering is done automatically.

An example of a rule is org.jgroups.protocols.rules.CheckFDMonitor: invoked periodically, it checks if the monitor task in FD is running when the membership is 2 or more and - if not - restarts it. The sections below show how to write the rule and how to invoke it.

All rules to be installed in SUPERVISOR are listed in an XML file, e.g. rules.xml:



<rules xmlns="urn:jgroups:rules:1.0">
     <rule name="rule1" class="org.jgroups.protocols.rules.CheckFDMonitorRule"
           interval="1000"/>
</rules>


There is only one rule "rule1" present, which is run every second. The name of the class implementing the rule is "org.jgroups.protocols.rules.CheckFDMonitorRule", and its implementation is:



public class CheckFDMonitor extends Rule {
    protected FD fd;
    public String name() {return "sample";}
    public String description() {
        return "Starts FD.Monitor if membership > 1 and monitor isn't running";
    }
    public void init() {
        super.init();
        fd=(FD)sv.getProtocolStack().findProtocol(FD.class);
        if(fd == null) {
            log.info("FD was not found, uninstalling myself (sample)");
            sv.uninstallRule("sample");
        }
    }
    public boolean eval() {
        return sv.getView() != null && sv.getView().size() > 1
            && !fd.isMonitorRunning();
    }
    public String condition() {
        View view=sv.getView();
        return "Membership is " + (view != null? view.size() : "n/a") +
            ", FD.Monitor running=" + fd.isMonitorRunning();
    }
    public void trigger() throws Throwable {
        System.out.println(sv.getLocalAddress() + ": starting failure detection");
        fd.startFailureDetection();
    }
}


CheckFDMonitor extends abstract class Rule which sets a reference to SUPERVISOR and the log when the rule has been installed.

Method name() needs to return a unique name by which the rule can be uninstalled later if necessary.

Description() should provide a meaningful description (used by JMX).

In init(), a reference to FD is set by getting the protocol stack from the SUPERVISOR (sv). If not found, e.g. because there is no FD protocol present in a given stack, the rule uninstalls itself.

Method eval() is called every second. It checks that the monitor task in FD is running (when the membership is 2 or more) and, if not, returns true. In that case, method trigger() will get called by the code in the Rule superclass and it simply restarts the stopped monitor task.

Note that rules can be installed and uninstalled dynamically at runtime, e.g. via probe.sh:

probe.sh op=SUPERVISOR.installRule["myrule", 1000,"org.jgroups.protocols.rules.CheckFDMonitor"]

installs rule CheckFDMonitor as "myrule" into the running system, and this rule will be run every 1000 ms.
probe.sh op=SUPERVISOR.uninstallRule["myrule"]

uninstalls "myrule" again.
probe.sh op=SUPERVISOR.dumpRules

dumps a list of currently installed rules to stdout.

Probe is the Swiss Army Knife for JGroups; it allows to fetch information about the members running in a cluster, get and set properties of the various protocols, and invoke methods in all cluster members.

Probe can even insert protocols into running cluster members, or remove/replace existing protocols. Note that this doesn't make sense though with stateful protocols such as NAKACK. But this feature is helpful, it could be used for example to insert a diagnostics or stats protocol into a running system. When done, the protocol can be removed again.

Probe is a script (probe.sh in the bin directory of the source distribution) that can be invoked on any of the hosts in same network in which a cluster is running.

The probe.sh script essentially calls org.jgroups.tests.Probe which is part of the JGroups JAR.

The way probe works is that every stack has an additional multicast socket that by default listens on 224.0.75.75:7500 for diagnostics requests from probe. The configuration is located in the transport protocol (e.g. UDP), and consists of the following properties:


Probe is extensible; by implementing a ProbeHandler and registering it with the transport (TP.registerProbeHandler()), any protocol, or even applications can register functionality to be invoked via probe. Refer to the javadoc for details.

To get information about the cluster members running in the local network, we can use the following probe command (note that probe could also be invoked as java -classpath $CP org.jgroups.tests.Probe $*):

[linux]/home/bela/JGroups$ probe.sh

-- send probe on /224.0.75.75:7500


#1 (149 bytes):
local_addr=A [1a1f543c-2332-843b-b523-8d7653874de7]
cluster=DrawGroupDemo
view=[A|1] [A, B]
physical_addr=192.168.1.5:43283
version=3.0.0.Beta1


#2 (149 bytes):
local_addr=B [88588976-5416-b054-ede9-0bf8d4b56c02]
cluster=DrawGroupDemo
view=[A|1] [A, B]
physical_addr=192.168.1.5:35841
version=3.0.0.Beta1



2 responses (2 matches, 0 non matches)
[linux]/home/bela/JGroups$


This gets us 2 responses, from A and B. "A" and "B" are the logical names, but we also see the UUIDs. They're both in the same cluster ("DrawGroupDemo") and both have the same view ([A|1] [A, B]). The physical address and the version of both members is also shown.

Note that probe.sh -help lists the command line options.

To fetch all of the JMX information from all protocols, we can invoke

probe jmx

However, this dumps all of the JMX attributes from all protocols of all cluster members, so make sure to pipe the output into a file and awk and sed it for legibility !

However, we can also JMX information from a specific protocol, e.g. FRAG2 (slightly edited>:

[linux]/home/bela$ probe.sh  jmx=FRAG2

-- send probe on /224.0.75.75:7500


#1 (318 bytes):
local_addr=B [88588976-5416-b054-ede9-0bf8d4b56c02]
cluster=DrawGroupDemo
physical_addr=192.168.1.5:35841
jmx=FRAG2={id=5, level=off, num_received_msgs=131, frag_size=60000,
           num_sent_msgs=54, stats=true, num_sent_frags=0,
           name=FRAG2, ergonomics=true, num_received_frags=0}

view=[A|1] [A, B]
version=3.0.0.Beta1


#2 (318 bytes):
local_addr=A [1a1f543c-2332-843b-b523-8d7653874de7]
cluster=DrawGroupDemo
physical_addr=192.168.1.5:43283
jmx=FRAG2={id=5, level=off, num_received_msgs=131, frag_size=60000,
           num_sent_msgs=77, stats=true, num_sent_frags=0,
           name=FRAG2, ergonomics=true, num_received_frags=0}

view=[A|1] [A, B]
version=3.0.0.Beta1




2 responses (2 matches, 0 non matches)
[linux]/home/bela$



We can also get information about specific properties in a given protocol:

[linux]/home/bela$ probe.sh  jmx=NAKACK.xmit

-- send probe on /224.0.75.75:7500


#1 (443 bytes):
local_addr=A [1a1f543c-2332-843b-b523-8d7653874de7]
cluster=DrawGroupDemo
physical_addr=192.168.1.5:43283
jmx=NAKACK={xmit_table_max_compaction_time=600000, xmit_history_max_size=50,
            xmit_rsps_sent=0, xmit_reqs_received=0, xmit_table_num_rows=5,
            xmit_reqs_sent=0, xmit_table_resize_factor=1.2,
            xmit_from_random_member=false, xmit_table_size=78,
            xmit_table_msgs_per_row=10000, xmit_rsps_received=0}

view=[A|1] [A, B]
version=3.0.0.Beta1


#2 (443 bytes):
local_addr=B [88588976-5416-b054-ede9-0bf8d4b56c02]
cluster=DrawGroupDemo
physical_addr=192.168.1.5:35841
jmx=NAKACK={xmit_table_max_compaction_time=600000, xmit_history_max_size=50,
            xmit_rsps_sent=0, xmit_reqs_received=0, xmit_table_num_rows=5,
            xmit_reqs_sent=0, xmit_table_resize_factor=1.2,
            xmit_from_random_member=false, xmit_table_size=54,
            xmit_table_msgs_per_row=10000, xmit_rsps_received=0}

view=[A|1] [A, B]
version=3.0.0.Beta1




2 responses (2 matches, 0 non matches)
[linux]/home/bela$



This returns all JMX attributes that start with "xmit" in all NAKACK protocols of all cluster members. We can also pass a list of attributes:

[linux]/home/bela$ probe.sh  jmx=NAKACK.missing,xmit

-- send probe on /224.0.75.75:7500


#1 (468 bytes):
local_addr=A [1a1f543c-2332-843b-b523-8d7653874de7]
cluster=DrawGroupDemo
physical_addr=192.168.1.5:43283
jmx=NAKACK={xmit_table_max_compaction_time=600000, xmit_history_max_size=50,
            xmit_rsps_sent=0, xmit_reqs_received=0, xmit_table_num_rows=5,
            xmit_reqs_sent=0, xmit_table_resize_factor=1.2,
            xmit_from_random_member=false, xmit_table_size=78,
            missing_msgs_received=0, xmit_table_msgs_per_row=10000,
            xmit_rsps_received=0}

view=[A|1] [A, B]
version=3.0.0.Beta1


#2 (468 bytes):
local_addr=B [88588976-5416-b054-ede9-0bf8d4b56c02]
cluster=DrawGroupDemo
physical_addr=192.168.1.5:35841
jmx=NAKACK={xmit_table_max_compaction_time=600000, xmit_history_max_size=50,
            xmit_rsps_sent=0, xmit_reqs_received=0, xmit_table_num_rows=5,
            xmit_reqs_sent=0, xmit_table_resize_factor=1.2,
            xmit_from_random_member=false, xmit_table_size=54,
            missing_msgs_received=0, xmit_table_msgs_per_row=10000,
            xmit_rsps_received=0}

view=[A|1] [A, B]
version=3.0.0.Beta1




2 responses (2 matches, 0 non matches)
[linux]/home/bela$


This returns all attributes of NAKACK that start with "xmit" or "missing".

To invoke an operation, e.g. to set the logging level in all UDP protocols from "warn" to "trace", we can use probe.sh op=UPD.setLevel["trace"]. This raises the logging level in all UDP protocols of all cluster members, which is useful to diagnose a running system.

Operation invocation uses reflection, so any method defined in any protocol can be invoked. This is a powerful tool to get diagnostics information from a running cluster.

For further information, refer to the command line options of probe (probe.sh -h).

In 3.4 the membership change algorithm was made pluggable; now application code can be called to determine how a new view is created. This is done for both regular views, e.g. caused by joins, leaves or crashes, and for merge views.

The tenet that the coordinator is always the first member of a view has not changed, but because the view generation can be done by application code, that code essentially also controls which member should be the coordinator.

This can be used to for example pin the coordinatorship to only certain 'beefy' servers. Another example is to make sure that only one of the previous coordinators becomes the new coordinator after a merge. This reduces the frequency with which the coordinator moves around and thus increases stability for singleton services (services which are started only on one node in a given cluster).

To do this, interface MembershipChangePolicy has to be implemented:



public interface MembershipChangePolicy {
    List<Address> getNewMembership(final Collection<Address> current_members,
                                   final Collection<Address> joiners,
                                   final Collection<Address> leavers,
                                   final Collection<Address> suspects);
    List<Address> getNewMembership(final Collection<Collection<Address>> subviews);
}


The first method is called whenever a regular view needs to be created. Parameter current_members is a list of the current members in the view. Joiners is the list of new members, leavers the members which want to leave the cluster and suspects the members which were suspected to have crashed.

The default policy adds the joiners to the end of the current members and removes suspected and leaving members.

The second method accepts a list of membership lists; each list represents a subview that needs to get merged into a new MergeView. For example, we could have {A,B,C}, {M,N,O,P} and {X,Y,Z}. A, M and X are the respective coordinators of the subviews and the task of the code is to determine the single coordinator which will be coordinator of the merged view. The default implementation adds all subview coordinators to a sorted set, takes the first (say M), adds it to the resulting list and the adds the subviews in turn. This could result in a MergeView like {M,A,B,C,N,O,P,X,Y,Z}.

A MembershipChangePolicy can be set in GMS via property membership_change_policy, which accepts the fully qualified classname of the implementation of MembershipChangePolicy. There is also a setter, setMembershipChangePolicy() which can be used to set the change policy programmatically.

The following example shows how to pin coordinatorship to a certain subset of nodes in a cluster.

Beefy nodes need to be marked as such, and this is done by using a special address, generated by an address generator (see Section 3.8.3, “Generating custom addresses”) in JChannel:



if(beefy)
    channel.setAddressGenerator(new AddressGenerator() {
        public Address generateAddress() {
            return PayloadUUID.randomUUID(channel.getName(), "beefy");
        }
    });
}


First we check if the current node that's about to be started needs to be marked as beefy. This would typically be passed to the instance via a command flag. If so, we grab the current channel (before it is started) and set an AddressGenerator which simply creates a subclass of UUID, a PayloadUUID.

The MembershipChangePolicy now knows if a node is beefy or not by checking if the node's address is a PayloadUUID (versus a regular UUID).

A possible implementation of MembershipChangePolicy is shown below:



public List<Address> getNewMembership(final Collection<Address> current_members,
                                      final Collection<Address> joiners,
                                      final Collection<Address> leavers,
                                      final Collection<Address> suspects) {
    Membership retval=new Membership();
    // add the beefy nodes from the current membership first
    for(Address addr: current_members) {
        if(addr instanceof PayloadUUID)
            retval.add(addr);
    }
    // then from joiners
    for(Address addr: joiners) {
        if(addr instanceof PayloadUUID)
            retval.add(addr);
    }
    // then add all non-beefy current nodes
    retval.add(current_members);
    // finally the non-beefy joiners
    retval.add(joiners);
    retval.remove(leavers);
    retval.remove(suspects);
    return retval.getMembers();
}


The idea is simple: we want beefy servers to be the first elements of a view. However, when a new beefy server joins, it should not become the new coordinator if the current coordinator already is a beefy server, but add itself to the end of the beefy servers, in front of non-beefy servers.

First we create a Membership, which is an ordered list without duplicates. We then iterate through the current membership and add the beefy servers to the list. The same is done with beefy joiners.

After that, we simply add all other current members (duplicates are suppressed by Membership) and joiners and remove suspected and leaving members.

The effect of this is that - while there are beefy servers in a view - the oldest beefy server will be the coordinator, then the second-oldest and so on. When no beefy servers are left, the oldest non-beefy server will be coordinator. When a beefy server joins again, it will become coordinator, taking the coordinatorship away from the previous non-beefy server.

A ForkChannel is a subclass of JChannel (Section 3.8, “JChannel”) implementing only a subset of methods (unimplemented methods throw an UnsupportedOperationException). It is a light-weight channel, referencing a JChannel (main channel), and it is cheap to create a ForkChannel, connect to a cluster, disconnect from it and close the channel.

A ForkChannel can be forked off of an existing stack (hence the name) and can add its own protocols to the newly created fork stack. Fork stacks can be created declaratively (at main channel creation time) or dynamically using the programmatic API.

The main use case for ForkChannels are

  • No need to configure and create a separate channel, but use of an existing JChannel (e.g. grabbed from Infinispan or WildFly) for private communication. Example: if we're running an Infinispan cache in a cluster and need the cluster nodes to communicate with each other, then we can create a ForkChannel to do that. The main channel used by Infinispan does not see the communication going on over the private fork channel, and vice versa. This is because a fork channel is given a unique ID and that ID is used to deliver messages sent by it only to fork channels with the same ID.
  • If we cannot for some reason modify the main stack's configuration, we can create a fork channel and a corresponding fork stack and add the protocols we need to that fork stack. Example: an application needs a fork stack with COUNTER (a distributed atomic counter) on top. To do so, it can create a fork stack with COUNTER and a fork channel connecting to that stack, and it will now have distributed atomic counter capabilities on its fork stack, which is not available in the main stack.

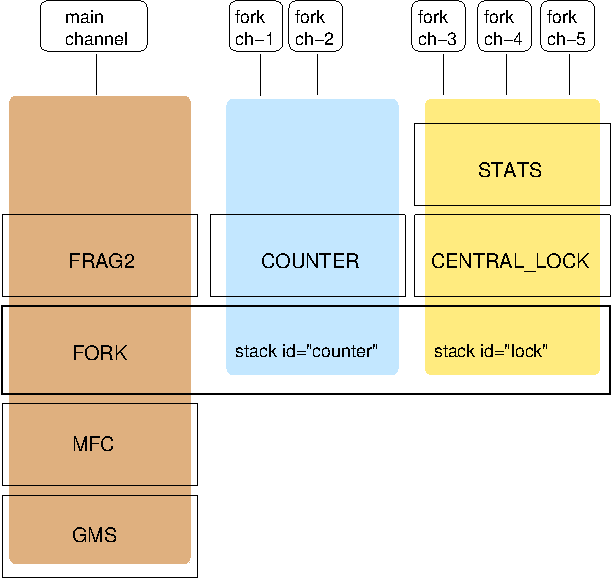

The architecture is shown in Figure 5.7, “Architecture of a ForkChannel”.


In the example, a main channel and 5 fork channels are shown. They are all running in the same JVM.

The brown stack to the left is the main stack and it has the main channel connected to it. Not all protocols are shown, but we've listed the GMS, MFC, FORK and FRAG2 protocols. The FORK protocol needs to be present in the main stack, or else fork stacks can not be created.

The FORK protocol of the main stack contains 2 fork stacks: "counter" and "lock". There are fork stack IDs and are used when creating a fork channel to determine whether fork channels share the same fork stack, or not.

The blue stack in the middle is a fork-stack with fork stack ID "counter". It adds protocol COUNTER to the protocols provided by the main stack. Therefore a message passing down through fork stack "counter" will pass through protocols COUNTER, FORK, MFC and GMS.

Fork channels have an ID, too, e.g. "fork-ch1". The combination of fork stack ID and fork channel ID is used to demultiplex incoming messages. For example, if fork channel 2 sends a message, it'll pass through COUNTER and into FORK. There, a header is added to the message, containing fork channel ID="fork-ch2" and fork stack ID="counter". Then the message passes down the main stack, through MFC, GMS and so on.

When the message is received, it passes up the reverse order: first GMS, then MFC, then it is received by FORK. If there is no header, FORK passes the message up the main stack, where it passes through FRAG2 and ends up in the main channel. If a header is present, the fork stack ID is used to find the correct fork-stack ("counter"). If no fork stack is found, a warning message is logged. The message then passes through COUNTER. Finally, the fork channel ID ("fork-ch2") is used to find the right fork channel and the message is passed to it.

Note that a fork stack can have more than 1 protocol; for example the yellow fork stack on the right side has 2 protocols. A fork stack can also have 0 protocols. In that case, it is only used to have a private channel for communication, and no additional protocols are required on top of the main stack.

Fork channels sharing the same fork stack also share state. For example, fork channels fork-ch1 and fork-ch2 share COUNTER, which means they will see each other's increments and decrements of the same counter. If fork stack "lock" also had a COUNTER protocol, and fork-ch1 anf fork-ch4 accessed a counter with the same name, they would still not see each other's changes, as they'd have 2 different COUNTER protocols.

Fork stacks can be created programmatically or declaratively. Let's take a look at the latter first. The XML fragment below shows this:



...
<MFC max_credits="2M" min_threshold="0.4"/>
<FORK config="/home/bela/fork-stacks.xml" />
<FRAG2 frag_size="60K" />
...


FORK refers to an external file to configure its fork stacks:



<fork-stacks xmlns="fork-stacks">
    <fork-stack id="counter">
        <config>
            <COUNTER bypass_bundling="true"/>
        </config>
    </fork-stack>

    <fork-stack id="lock">
         <config>
             <CENTRAL_LOCK num_backups="2"/>
             <STATS/>
         </config>
    </fork-stack>

</fork-stacks>


The file fork-stacks.xml defines 2 fork stacks: "counter" and "lock". Each fork-stack element has an 'id' attribute which defines the fork stack's ID. Note that all fork stacks have to have unique IDs.

After the fork-stack element, the child element starting with 'config' is a regular JGroups XML config file schema, where protocols are defined from bottom to top. For example, fork stack "lock" defines that CENTRAL_LOCK is the first protocol on top of FORK for the given fork stack, and STATS is on top of CENTRAL_LOCK.

When FORK is initialized, it will create the 2 fork stacks. When fork channels are created (see the next section), they can pick one of the 2 existing fork stacks to be created over, or they can dynamically create new fork stacks.

A fork channel is created by instantiating a new ForkChannel object:



JChannel main_ch=new JChannel("/home/bela/udp.xml").name("A");
ForkChannel fork_ch=new ForkChannel(main_ch, "lock", "fork-ch4",
                                    new CENTRAL_LOCK(), new STATS());
fork_ch.connect("bla");
main_ch.connect("cluster");


First the main channel is created. Note that udp.xml may or may not contain FORK, but for this example, we assume it is present.

Then the ForkChannel is created. It is passed the main channel, the fork stack ID ("lock") and the fork channel ID ("fork-ch4"), plus a list of already instantiated protocols (CENTRAL_LOCK and STATS). If FORK already contains a fork stack with ID="lock", the existing fork stack will be used, or else a new one will be created with protocols CENTRAL_LOCK and STATS. Then a new fork channel with ID="fork-ch4" will be added to the top of fork stack "lock". An exception will be thrown if a fork channel with the same ID already exists.

The ForkChannel now calls connect(), but the cluster name is ignored as fork channels have the same cluster name as they main channel the reference. The local address, name, view and state are also the same. This means, that even though connect() was called, the fork channel is not yet connected. As soon as the main channel is connected, the fork channel will be connected, too.

The lifetime of a fork channel is always dominated by the main channel: if the main channel is closed, all fork channels atttached to it are in closed state, too, and trying to send a message will throw an exception.

The example above showed the simplified constructor, which requires the FORK protocol to be present in the stack. There's another constructor which allows for FORK to be created dynamically if not present:



public ForkChannel(final Channel main_channel,
                   String fork_stack_id, String fork_channel_id,
                   boolean create_fork_if_absent,
                   int position,
                   Class<? extends Protocol> neighbor,
                   Protocol ... protocols) throws Exception;


In addition to passing the main channel, the fork stack and channel IDs and the list of protocols, this constructor also allows a user to create FORK in the main stack if not present. To do so, create_fork_if_absent has to be set to true (else an exception is thrown if FORK is not found), and the neighbor protocol (e.g. FRAG2.class) has to be defined, plus the position (ProtocolStack.ABOVE/BELOW) relative to the neighbor protocol has to be defined as well.

The design of FORK / ForkChannel is discussed in more detail at FORK.txt



[5] Although not as efficient (and using more bandwidth), it is sometimes the only possibility to reach group members.

[6] To do so, GossipRouter maintains a mapping between cluster names and member addresses, and TCP connections.

[7] Currently, SocketFactory does not support creation of NIO sockets / channels.

[8] Note that block() will be called in a Receiver when the flush is about to start and unblock() will be called when it ends
